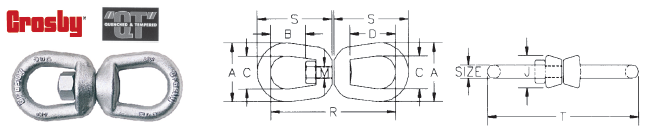

Dimensions (inch) for Regular Swivels Type G-402

Size WLL tons A B C D J M R S T lbs each
1/4 .425 1.25 .69 .75 1.06 .69 .31 2.94 1.69 3.44 .21
5/16 .625 1.63 .81 1.00 1.25 .81 .38 3.56 2.06 4.19 .39
3/8 1.25 2.00 .94 1.25 1.50 1.00 .50 4.31 2.50 5.06 .71
1/2 1.8 2.50 1.31 1.50 2.00 1.31 .63 5.44 3.19 6.44 1.32
5/8 2.6 3.00 1.56 1.75 2.38 1.50 .75 6.56 3.88 7.81 2.49
3/4 3.6 3.50 1.75 2.00 2.63 1.88 .88 7.19 4.31 8.69 4.02
7/8 5.0 4.00 2.06 2.25 3.06 2.13 1.00 8.38 5.00 10.13 6.25
1 6.25 4.50 2.31 2.50 3.50 2.38 1.13 9.63 5.75 11.63 8.95
1-1/4 9.0 5.63 2.69 3.13 3.69 3.00 1.38 11.13 6.75 13.36 16.37
1-1/2 22.6 7.00 4.19 4.00 4.19 4.00 2.25 17.13 10.00 20.13 45.79
Ultimate Load is 5 times the WLL
