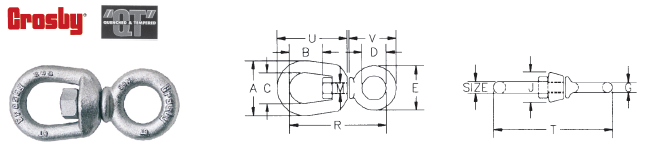

Dimensions (inch) for Chain Swivels Type G-401

Size
inch
WLL
tons
A B C D E G J M R T U V lbs
each
1/4 .425 1.25 .69 .75 .62 1.12 .25 .69 .31 2.25 2.75 1.69 1.25 .13
5/16 .625 1.63 .81 1.00 .75 1.38 .31 .81 .38 2.72 3.34 2.06 1.47 .25
3/8 1.25 2.00 .94 1.25 1.00 1.75 .38 1.00 .50 3.44 4.19 2.50 1.88 .54
1/2 1.8 2.50 1.31 1.50 1.25 2.25 .50 1.31 .63 4.25 5.25 3.19 2.44 1.12
5/8 2.6 3.00 1.56 1.75 1.50 2.75 .62 1.50 .75 5.13 6.31 3.88 2.94 2.09
3/4 3.6 3.50 1.75 2.00 1.75 3.25 .75 1.88 .88 5.78 7.22 4.94 3.46 3.09
Ultimate Load is 5 times the WLL
