Product Features

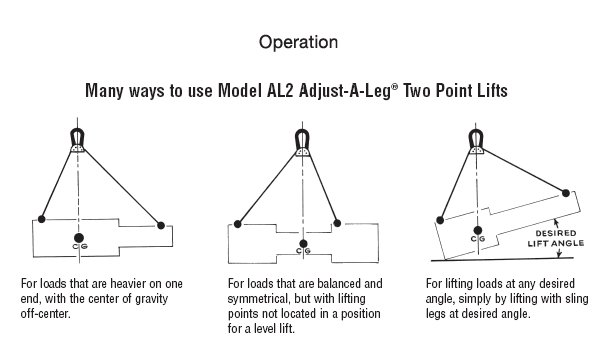

  • Allows crane hook to be over the load’s center of gravity in unbalanced or non-symmetrical two point lifts.
  • Quickly adjusts to center of gravity.
  • Can be locked into place for constant lifts.
  • Can be used in conjunction with spreader beams.
  • Ideal for use in rigging applications and machinery moving.
  • Complies with ASME standards.

Product Specifications



Model AL2 Specifications
Model numbers shown in green are part of our INSTOCK program.

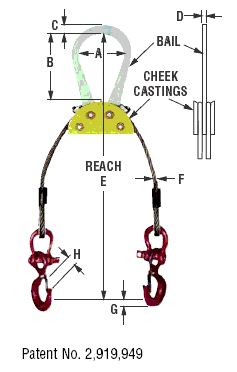

Model Number 5 Rated Capacity (tons) with Legs at 45º Off Horz. E (ft.) F (in.) A (in.) B (in.) C (in.) D (in.) Alloy Steel Hook Size (tons) H (in.) G (in.) Anchor Shackle Size (in.) Weight (lbs.)
52-1 1 3 5/16 3-1/8 5 1-1/8 5/8 1 1 3/4 3/8 7-1/2
52-2 2 4 5/16 3-1/8 5 1-1/8 5/8 1-1/2 1-1/16 27/32 1/2 20
52-4 4 6 7/16 3-1/8 5 1-1/8 5/8 3 1-1/4 1-1/8 5/8 32
52-6 6 9 9/16 5-1/4 8-3/8 1-3/4 13/16 5 1-1/2 1-3/8 3/4 76
52-8 8 9 5/8 5-1/4 8-3/8 1-3/4 7/8 7 1-7/8 1-7/8 7/8 90
52-12 12 9 3/4 5-5/8 8-3/4 2-3/8 1-1/16 11 2-1/4 2-1/8 1-1/8 152
52-15 15 9 7/8 5-5/8 8-3/4 2-3/8 1-1/16 11 2-1/4 2-1/8 1-1/4 175
52-15L 15 9 7/8 9 15 2-1/2 1-1/16 11 2-1/4 2-1/8 1-1/4 188
52-22 22 9 1-1/8 9 15 3-1/2 1-1/2 - - - 1-1/2 350
52-28 28 9 1-1/4 9 15 3-1/2 1-3/4 - - - 1-3/4 385
52-36 36 9 1-1/2 9 15 3-1/2 2 - - - 2 450
52-50 50 9 1-3/4 9 15 3-1/2 2-1/4 - - - 2 525
52-62 62 12 2 9 15 6-1/4 3 - - - 2-1/2 1200
52-75 75 15 2-1/4 9 15 6-1/4 4 - - - 3 1500
NOTE: Reach calculation — approximately 70% distance between pick up points. *Unit must be loaded with at least 10% of rated capacity.
