Leveling Pipe Lifter
Lets you place and position concrete pipe up to 8′ in length in one operation.

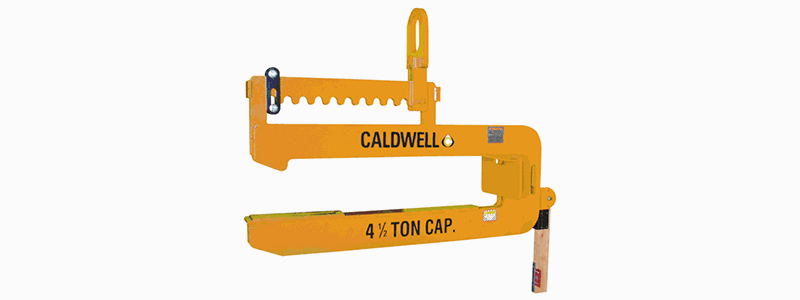

Model CPL-4.5 Leveling Pipe Lifter shown.
Product Features
- Stand-up leveling bail adjusts for varying pipe lengths.
- Adjustable bail stop makes repetitive lifts easy to handle.
- Pipe stop helps drive the pipe into position.
- Built-in laser target holder allows operator to set & laser position at the same time.*
- Positioning handle.
- Complies with ASME standards.
Leveling Pipe Lifter Video
Shows the C-Hook Pipe Lifter in use.
Product Specifications

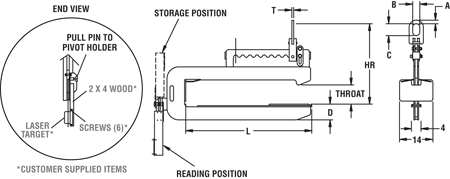

| Model CPL Spcifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model numbers shown in green are part of our INSTOCK program. | |||||||||||
| Model Number | Min. Pipe I.D. (in.) | Throat (in.) | D (in.) | L (in.) | HR (in.) | A (in.) | B (in.) | C (in.) | T (in.) | Capacity (lbs.) | Weight (lbs.) |
| CPL-1.5 | 8 | 8 | 6.62 | 53 | 33.80 | 1.50 | 3 | 5 | 0.75 | 3000 | 300 |
| CPL-3 | 10 | 8 | 6.87 | 53 | 35.63 | 1.50 | 3 | 5 | 1 | 6000 | 500 |
| CPL-4.5 | 10 | 8 | 7.44 | 54 | 37.31 | 2 | 4 | 7 | 1.25 | 9000 | 700 |
| CPL-6 | 12 | 8.50 | 8.38 | 54.50 | 39.25 | 2 | 4 | 7 | 1.25 | 12000 | 750 |
| CPL-9 | 12 | 10 | 8.25 | 55 | 41.63 | 2 | 4 | 7 | 1.25 | 18000 | 1100 |
| CPL-15 | 14 | 12 | 10.75 | 58 | 48.12 | 2.50 | 4 | 7 | 1.50 | 30000 | 1550 |
|
*NOTE: Laser target, 2x4 and screws not included.
|
|||||||||||
